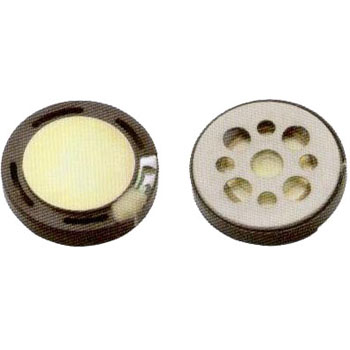

                 SR-1740BQ
Product Number
SR-1740BQ
Description
Diameter: X17mm
Height: 3.6mm
Enquiry
Send Enquiry
Specification
Weight (nominal)1.25g
Speaker: Impedance([) @ 2KHz, 1V input8 15%
Speaker: Rated Power Input0.5W
Speaker: Maximum Power Input1.0W
Speaker: Bass Resonance Frequency @ 1V input850Hz 20%
Speaker: S.P.L @ 0.1W/0.1m @ 1KHz97 3dB
Speaker: Frequency Rangefo~~20KHz
Speaker:THD @ 0.1W/0.1m @ 1KHz<15%
Operating Temperature Range (J)-30 to +85
Storage Temperature Range (J)-40 to +85
