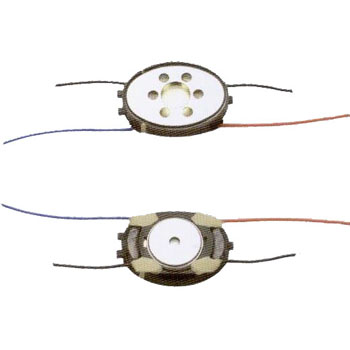

                 SR1318BL-1
Product Number
SR1318BL-1
Description
Diameter: 19mm x 13mm
Height: 4mm
Enquiry
Send Enquiry
Specification
Weight (nominal)1.83g
Speaker: Impedance([) @ 2KHz, 1V input8 15%
Speaker: Rated Power Input0.5W
Speaker: Maximum Power Input1W
Speaker: Bass Resonance Frequency @ 1V input750Hz 20%
Speaker: Sensitivity @ 0.1W/0.1m @ 1KHz87 3dB
Speaker: Frequency Rangefo~~20KHz
Speaker:THD @ 0.1W/0.1m @ 1KHz<15%
Receiver: Rated Power Input0.01W
Receiver: Maximum Power Input0.03W
Receiver: S.P.L @ 100mV @ 1KHz106 3dB
Receiver: THD @ 0.01W 1KHz 5%
Operating Temperature Range (J)-40 to +80
Storage Temperature Range (J)-40 to +85
