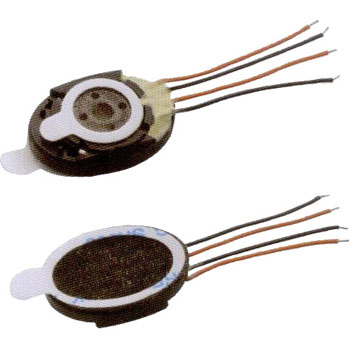

                 SR1318BLQ-2
Product Number
SR1318BLQ-2
Description
Diameter: 18mm x 13mm
Height: 4mm
Enquiry
Send Enquiry
Specification
Weight (nominal)1.75g
Speaker: Impedance(£[) @ 2KHz, 1V input8 ¡Ó 15%
Speaker: Rated Power Input0.5W
Speaker: Maximum Power Input1W
Speaker: Bass Resonance Frequency @ 1V input850Hz ¡Ó 20%
Speaker: Sensitivity @ 0.1W/0.1m @ 1KHz88 ¡Ó 3dB
Speaker: Frequency Rangefo~~20KHz
Speaker:THD @ 0.1W/0.1m @ 1KHz<15%
Receiver: Rated Power Input0.01W
Receiver: Maximum Power Input0.03W
Receiver: S.P.L @ 100mV @ 1KHz110 ¡Ó 3dB
Receiver: THD @ 0.01W 1KHz¡Ø 5%
Operating Temperature Range (¢J)-40 to +80
Storage Temperature Range (¢J)-40 to +85
